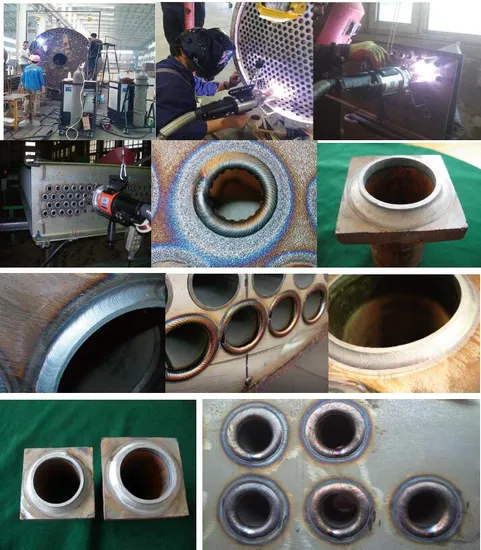

High-precision automatic orbital tube welder for efficient tube-to-tube-sheet welding in heat exchangers and boilers.

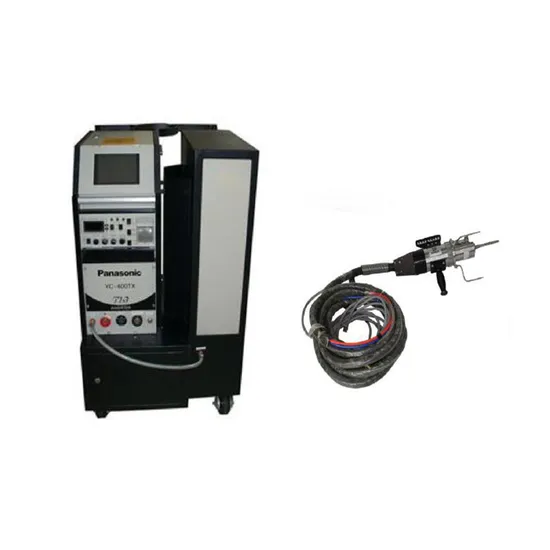

Features a PLC-controlled process with a Panasonic welding source and Switzerland Maxon motor for high-quality, repeatable welds.
Achieves 2-3 times higher productivity than conventional TIG welding, with a memory capacity for 100 successful welding programs.

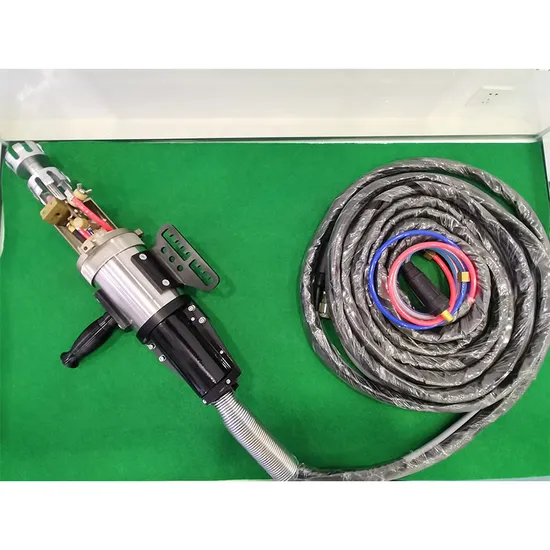

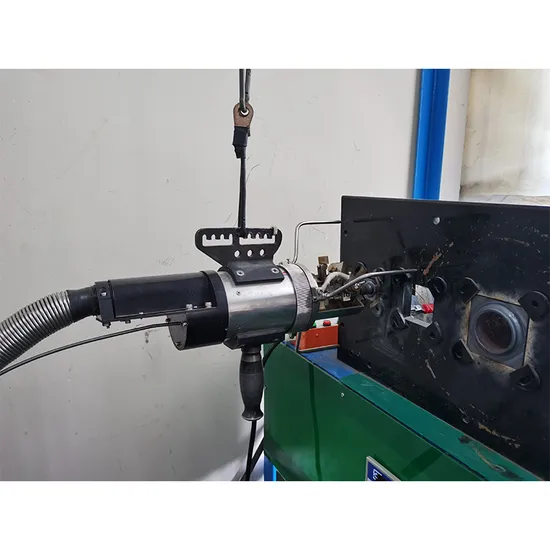

The lightweight 6.5kg welding head incorporates water-cooling channels and an enclosed design for continuous operation and optimal gas shielding.

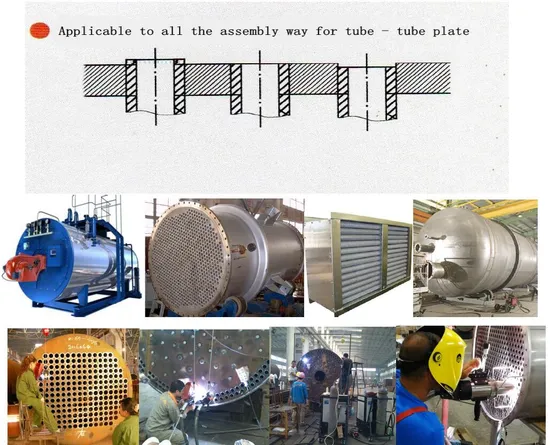

System includes elastic positioning mandrels and a three-point support frame for rapid, accurate setup on various tube sheet forms.
A user-friendly remote control box with a 5m cable allows for real-time parameter adjustments during the welding process.
Applicable Tube Outer Diameter: 12-80mm (Customizable up to 89mm)
Applicable Tube Wall Thickness: 0.8-10mm
Welding Current Range: 8-400A (TIG)
Welding Speed: 50-150mm/min
Rated Input Power: 13.2kw at 380V±10%
Pulse Frequency: 0.5-500HZ
