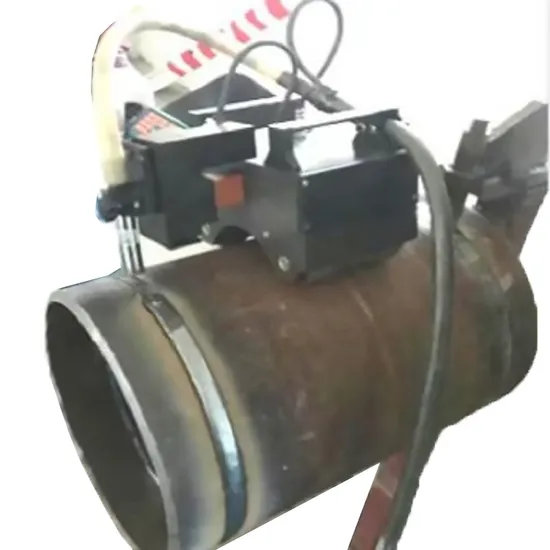

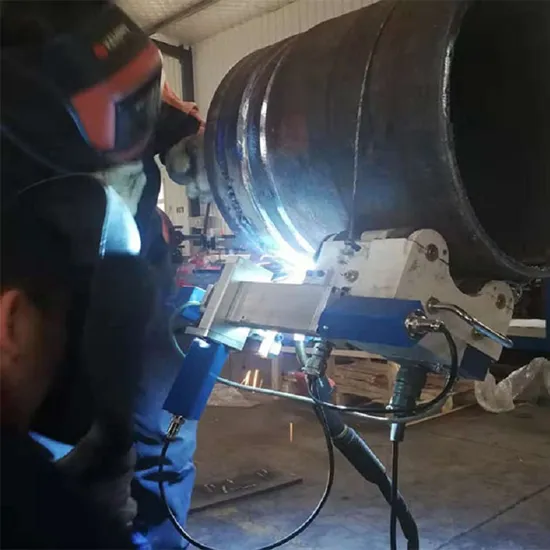

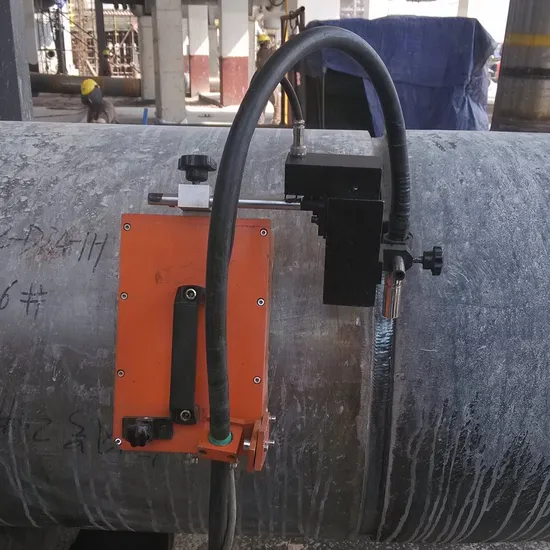

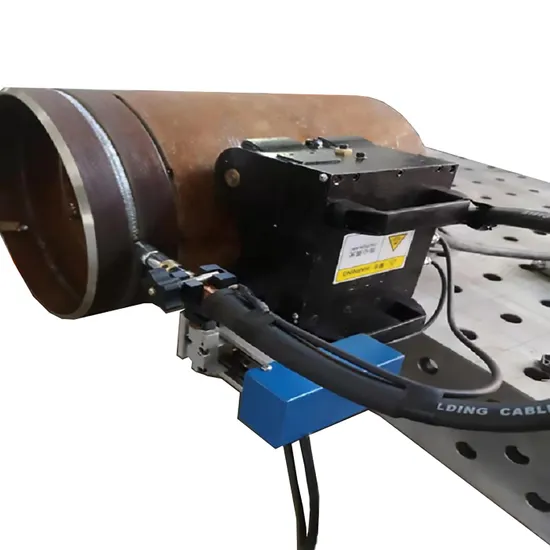

Automated all-position TIG tube welder for high-efficiency pipeline fabrication without guide rails.
Features an automatic swing function with adjustable speed, range, and dwell time for creating wider, customized welds in a single pass.
Equipped with a permanent magnet four-wheel drive system (0-700mm/min) to ensure stable adhesion and prevent disconnection on curved surfaces.
Boosts working efficiency to 1.5 times that of manual welding, significantly reducing labor costs and project timelines.
The high-automation TIG welding process guarantees consistent, stable, and high-quality weld seams, reducing the defect rate to near-zero.
Its compact 16 kg design ensures easy installation, portability, and straightforward operation by non-specialized personnel.
Ideal for diverse pipeline applications, supporting carbon steel, alloy steel, stainless steel, and titanium alloy tube-to-tube butt joints.
Power Supply: AC 220V
Total Weight: 16 Kg (Including swinger)
Moving Mode: Four-wheel drive (Magnet-wheel)
Walking Speed: 0-700 mm/min
Swing Speed: 0-10 RPM (Adjustable via scale)
Swing Scope: 0 to ±10° (Adjustable via scale)
